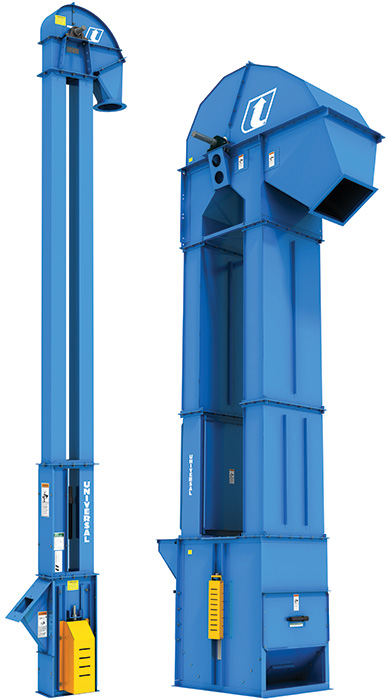

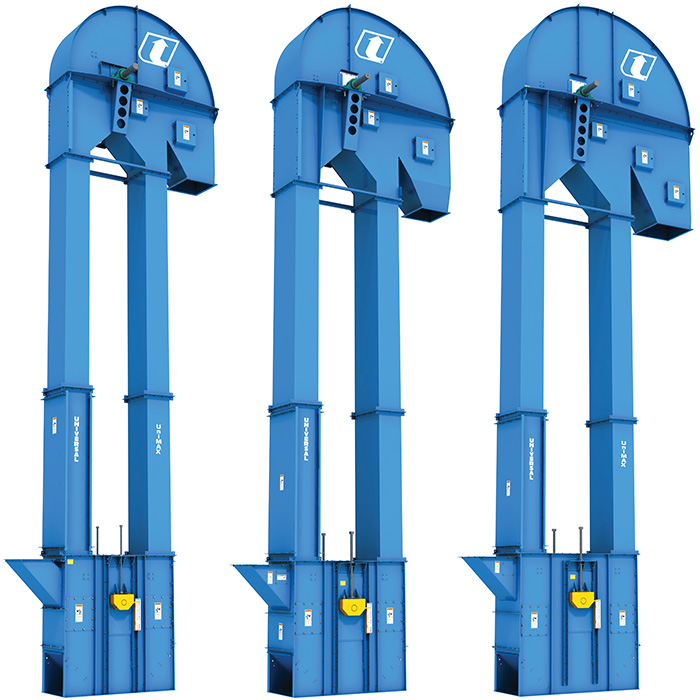

BUCKET ELAVATOR

A bucket elevator is a vital machine in grain and flour milling, designed to vertically lift bulk materials such as grain, flour, or bran between different stages of the milling process. It uses motor-driven belts or chains with attached buckets to transport materials efficiently.

Purpose in Milling:

Moves grain, flour, or bran between processing stages (e.g., cleaning to grinding).
Optimizes space by transporting materials vertically.

Common Uses:

Grain mills – Transporting grain between storage and processing.
Flour mills – Moving flour or bran through production and packaging.
Feed mills – Elevating feed grains for processing.

Model	Stocks	Bucket model	Bucket volume (L)	Bucket distance (mm)	Capacity (t/h)
					Speed Ratio
					1:17	1:13	1:11
HDTD20/11	Wheat	DS1109	0.27	150	3.45	4.47	5.2
HDTD20/11	Flour	DQ1109	0.21	150	1.5
HDTD30/13	Wheat	DS1311	0.51	180	7.0	9.0	10.7
HDTD30/13	Flour	DQ1311	0.3	180	2.4
HDTD40/18	Wheat	DS1814	1.35	200	24.0	32.0	38.0
HDTD40/18	Flour	DQ1814	0.78	180	9.0
HDTD40/23	Wheat	DS2314	1.6	200	29.0	39.0	46.0
HDTD40/23	Flour	DQ2314	1.25	180	14.8
HDTD50/28	Wheat	DS2816	3.7	220	80.0	90.0	104.0
HDTD50/28	Flour	DQ2816	1.38	200	14.7
HDTD60/34	Wheat	DS3321	5.81	250	134
HDTD60/34	Flour	DQ3321	3.7	250	30
